BLDC Motor controller

This project was also developed to support the 'Quadrotor Dorne' project.

I used the ST's official developement kit for testing.

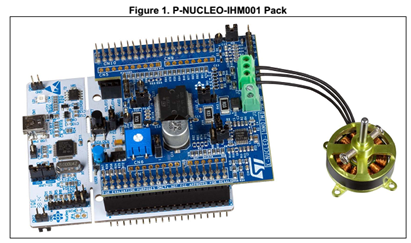

test kit — The developement kit I used(Credit: ST)

This was a `trapezoidal bldc motor` controller

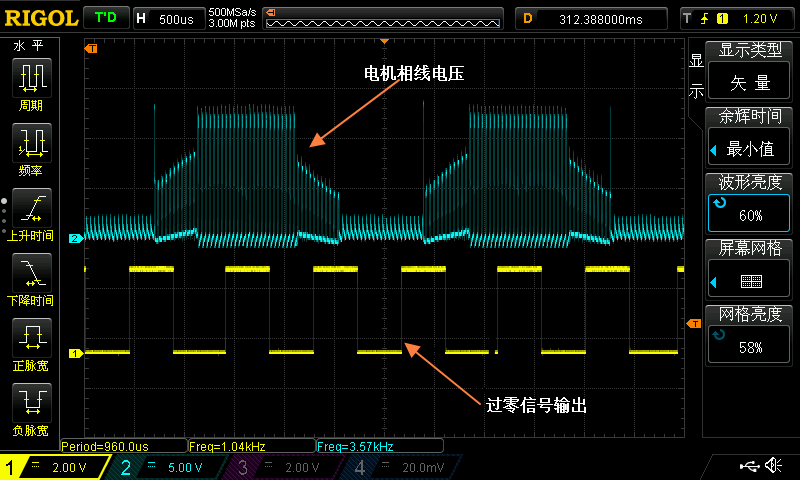

test kit — Zero-crossing signal detection

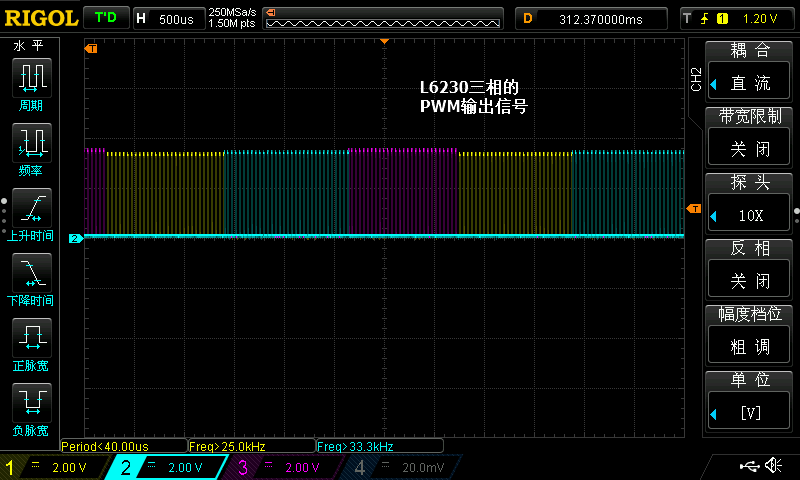

test kit — PWM signals for three phases

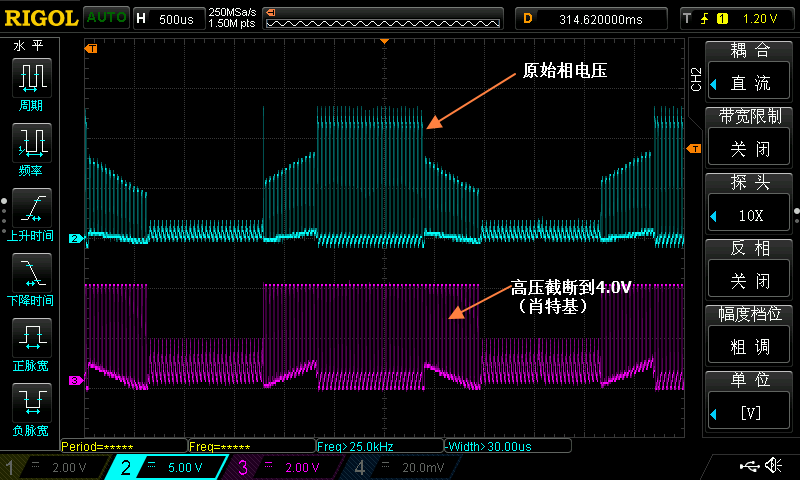

test kit — Phase voltabe feedback

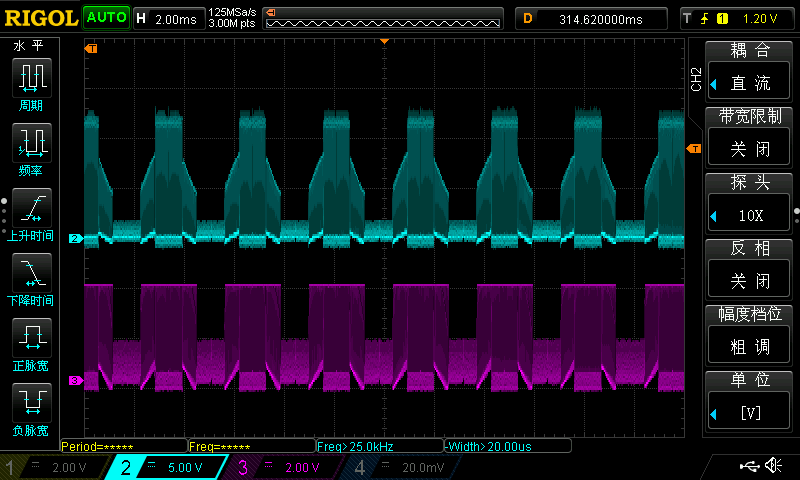

test kit — Phase output and BEMF(Back Electromotive Force)
